Piston KOLBENSCHMIDT 92969600

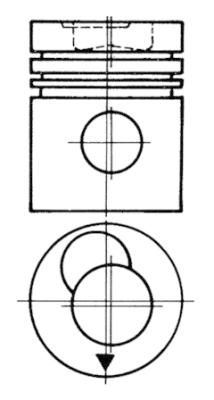

Piston

92969600 Part number:

Manufacturer KOLBENSCHMIDT Production Number : 128011 Cylinder Bore [mm] : 128 Piston Clearance [mm] : 0,13 Compression Height [mm] : 101,35 Length [mm] : 159,35 Recess Depth 1 [mm] : 25,8 Valve Pocket Depth 1 [mm] : 0,65 Recess Diameter [mm] : 68 Component Number : 21650 Component Number : 24228 Component Number : 41939 Standard Size [STD] Bolt Head Diameter [mm] : 48 Bolt Length [mm] : 108

126.72 EUR netto

155.87 EUR

Additional information

Product description Piston

Production Number : 128011 Cylinder Bore [mm] : 128 Piston Clearance [mm] : 0,13 Compression Height [mm] : 101,35 Length [mm] : 159,35 Recess Depth 1 [mm] : 25,8 Valve Pocket Depth 1 [mm] : 0,65 Recess Diameter [mm] : 68 Component Number : 21650 Component Number : 24228 Component Number : 41939 Standard Size [STD] Bolt Head Diameter [mm] : 48 Bolt Length [mm] : 108

Application

Proprietary use

OEM numbers

HANOMAG: 307 072 4 NA HANOMAG: 307 074 6 M 92 HANOMAG: 307 952 4 M 92 HANOMAG: 746 M 91 HANOMAG HENSCHEL: 307 072 4 NA HANOMAG HENSCHEL: 307 074 6 M 92 HANOMAG HENSCHEL: 307 952 4 M 92 HANOMAG HENSCHEL: 746 M 91 HANOMAG RHEINSTAHL: 307 072 4 NA HANOMAG RHEINSTAHL: 307 074 6 M 92 HANOMAG RHEINSTAHL: 307 952 4 M 92 HANOMAG RHEINSTAHL: 746 M 91

Piston

Product description Piston

Application

Proprietary use

OEM numbers
